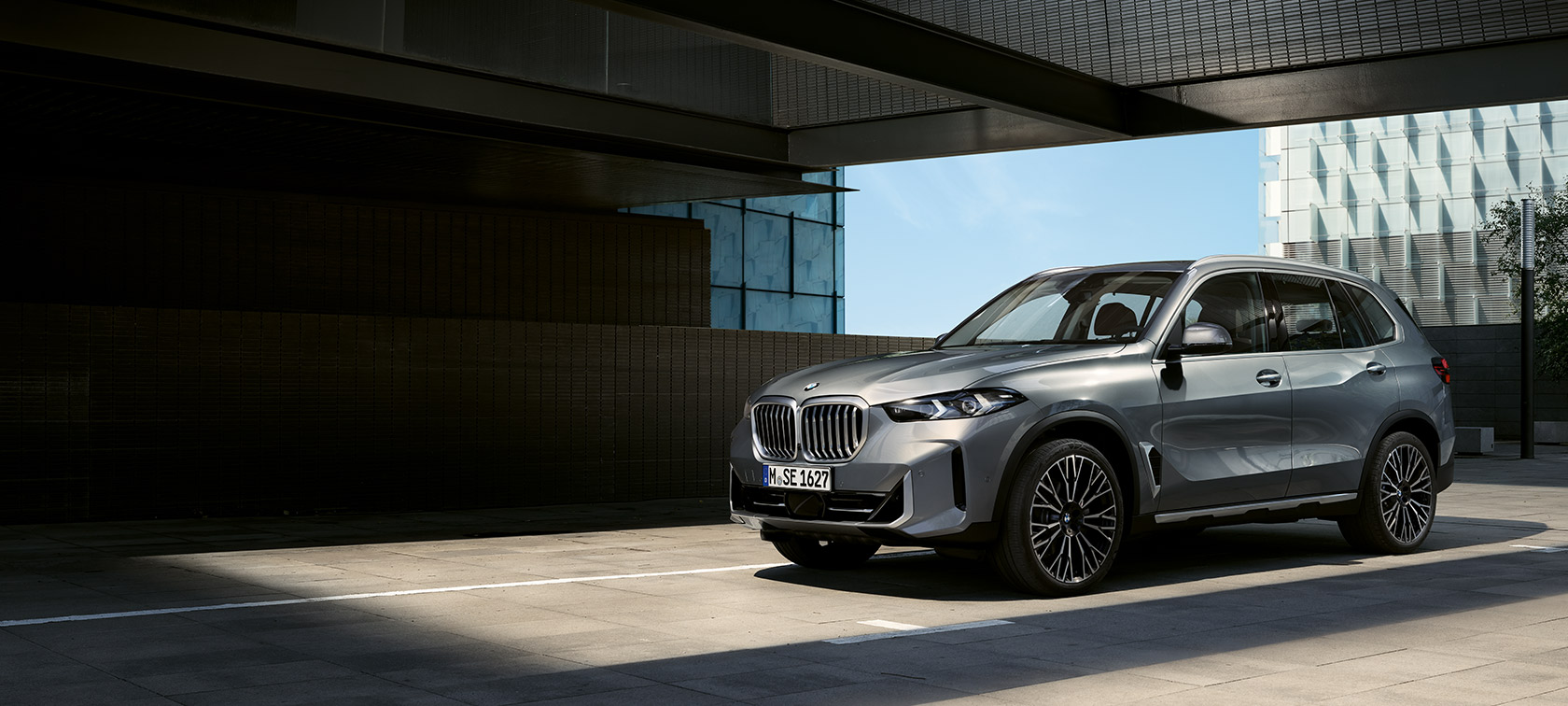

BMW X5 G05 LCI

THE NEW X5

BMW X5: ENGINES & TECHNICAL DATA.

THE NEW X5BMW X5: ENGINES & TECHNICAL DATA.

The key facts and figures for the new BMW X5 at a glance:


  • Engine, consumption and CO2 emissions
  • Performance data such as displacement, kW, Nm and acceleration
  • Weight, dimensions, wheel and tyre sizes
Read more

BMW X5: TECHNICAL DATA.

Select model

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW 280
Torque in Nm 540
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 6
Displacement in cm³ 2998
Nominal power in kW/1/min 280/5200-6250
Nominal torque in Nm/1/min 520/1850-5000

Electric motor [2][3]

(Nominal) power/30 minutes power in kW 9 (12)/9
(Nominal) torque in Nm 200

Performance

Acceleration 0–100 km/h in s 5.4
Maximum speed in km/h 250
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 9.9-8.5
CO2 emissions, combined WLTP in g/km [5] 224-193
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4935/2004/1765
Wheelbase in mm 2975
Curb weight in kg [8] 2240
Luggage capacity in l 650-1870
Fuel capacity in l 83
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 3500/140

Total Powertrain [1][2]

Powertrain type Petrol
Power in kW 390
Torque in Nm 750
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 8
Displacement in cm³ 4395
Nominal power in kW/1/min 390/5500-6000
Nominal torque in Nm/1/min 750/1800-4600

Electric motor [2][3]

(Nominal) power/30 minutes power in kW 9 (12)/9
(Nominal) torque in Nm 200

Performance

Acceleration 0–100 km/h in s 4.3
Maximum speed in km/h 250
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 12.5-11.5
CO2 emissions, combined WLTP in g/km [5] 283-261
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4935/2004/1765
Wheelbase in mm 2975
Curb weight in kg [8] 2420
Luggage capacity in l 650-1870
Fuel capacity in l 83
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 3500/140

Total Powertrain [1][2]

Powertrain type Diesel
Power in kW 219
Torque in Nm 670
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 6
Displacement in cm³ 2993
Nominal power in kW/1/min 210/4000
Nominal torque in Nm/1/min 650/1500-2500

Electric motor [2][3]

(Nominal) power/30 minutes power in kW 9 (12)/9
(Nominal) torque in Nm 200

Performance

Acceleration 0–100 km/h in s 6.1
Maximum speed in km/h 233
Electric top speed in km/h -

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 8.2-7.1
CO2 emissions, combined WLTP in g/km [5] 215-186
Energy consumption, combined WLTP in kWh/100 km [5] -
Electric range, WLTP in km [6] -

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh -
Maximum charging power AC/DC in kW -
Charging time DC 10–80% in min -
Charging time AC 0–100% in h -

Dimensions/weights

Length/width/height in mm 4935/2004/1765
Wheelbase in mm 2975
Curb weight in kg [8] 2295
Luggage capacity in l 650-1870
Fuel capacity in l 80
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 3500/140

Total Powertrain [1][2]

Powertrain type Petrol - plug-in hybrid
Power in kW 360 (489) [9]
Torque in Nm 700 [9]
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 6
Displacement in cm³ 2998
Nominal power in kW/1/min 230/5000-6500
Nominal torque in Nm/1/min 450/1750-4700

Electric motor [2][3]

(Nominal) power/30 minutes power in kW 145 (197)/57
(Nominal) torque in Nm 280

Performance

Acceleration 0–100 km/h in s 4.8
Maximum speed in km/h 250
Electric top speed in km/h 140

Fuel economy/CO2 emissions [1][4]

Fuel consumption, combined in l/100 km [5] 1.1-0.8
CO2 emissions, combined WLTP in g/km [5] 26-18
Energy consumption, combined WLTP in kWh/100 km [5] 27.0-22.9
Electric range, WLTP in km [6] 94-110

High-voltage/48 volt battery, charging [7]

Battery capacity in kWh 25.7
Maximum charging power AC/DC in kW 7.4/-
Charging time DC 10–80% in min -
Charging time AC 0–100% in h 4.5

Dimensions/weights

Length/width/height in mm 4935/2004/1755
Wheelbase in mm 2975
Curb weight in kg [8] 2495
Luggage capacity in l 500-1720
Fuel capacity in l 69
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2700/140

Fuel consumption and CO2 emissions.

BMW X5 M60i xDrive*:
Fuel consumption, combined WLTP in l/100 km: 12.5-11.5
CO2 emissions, combined WLTP in g/km: 283-261



BMW X5 xDrive40i*:
Fuel consumption, combined WLTP in l/100 km: 9.9–8.5
CO2 emissions, combined WLTP in g/km: 224–193



BMW X5 xDrive30d*:
Fuel consumption, combined WLTP in l/100 km: 8.2-7.1
CO2 emissions, combined WLTP in g/km: 215-186



BMW X5 xDrive50e*:
Fuel consumption, combined WLTP in l/100 km: 1.1-0.8
CO2 emissions, combined WLTP in g/km: 26-18



The values of the vehicles labelled with * are preliminary.

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometres.

The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

[1] Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

[2] For plug-in hybrid: Electric drive depending on battery charging level.

[3] For plug-in hybrid: At temperatures below freezing, the fully electric drive system is only available after a few kilometres of driving, once the battery has heated to operational temperature.

[4] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/

[5] For plug-in hybrid: Weighted, combined (EC AC Charge Weighted)

[6] Range depends on various factors, in particular: individual driving style, route characteristics, outside temperature, heating/air conditioning, pre-conditioning.

[7] The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.

[8] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.

[9] Composed of combustion engine drive (specified nominal value) and electric drive (up to specified nominal value). Electric drive depending on battery charging level.

[10] Provisional figures; any missing figures were unavailable at the time of publication.
