CHALLENGE YOURSELF.

The exclusive model BMW M4 GTS.

CHALLENGE YOURSELF.

The exclusive model BMW M4 GTS.

CHALLENGE YOURSELF.The exclusive model BMW M4 GTS.
BMW M subbrand

Max. output in kW

368 / 6250

Max. torque in Nm

600 / 4000 – 5500

Acceleration 0–100 km/h in s

3.8

Top speed in km/h

305**

**Electronically limited



With the BMW M4 GTS, BMW M GmbH presents a fascinating high-performance vehicle that continues the tradition of legendary special models based on the BMW M3. The vehicle was conceived with an eye for trailblazing technology and a keen focus on the racetrack – as demonstrated by its lap time of 7 minutes 28 seconds on the Nordschleife of the Nürburgring. At the same time, it is fully road-legal. The limited production number of just 700 enhances the exclusive nature of the BMW M4 GTS.

DRIVING DYNAMICS.

The BMW M4 GTS brings motorsport technology to the road. It features the innovative water injection system that has already provided a significant output and torque boost in the BMW M4 MotoGP Safety Car. Water is injected as a fine spray into the intake manifold plenum chamber. When the water vaporises, the intake air cools significantly. As a result, the final compression temperature in the combustion chamber – and therefore the engine’s tendency to “knock” – is reduced, enabling the M TwinPower Turbo inline 6-cylinder engine to use higher boost pressure and earlier injection timing. This technology ensures an increase in output and torque, while at the same time reducing the thermal stress on performance-relevant components.
The chassis, front splitter and rear wing are manually adjustable, ensuring perfect aerodynamic balance and allowing the vehicle to be adapted for both individual racetracks and for use on the road.

  • M-specific coilover suspension

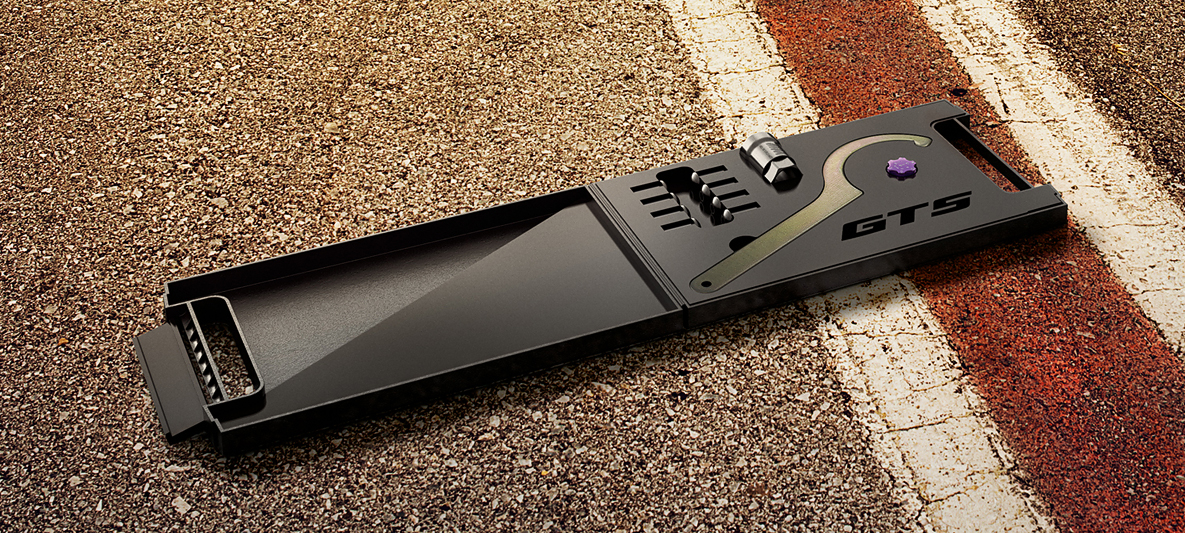

    The M-specific 3-way coilover suspension with modified stabilisers and the milled aluminium swivel bearings enable the suspension to be lowered continuously up to a maximum of 20 mm at the front and 17 mm at the rear, and the damping can also be adjusted to suit the current driving situation. The compression level can be adjusted separately to enable quicker or slower compression.

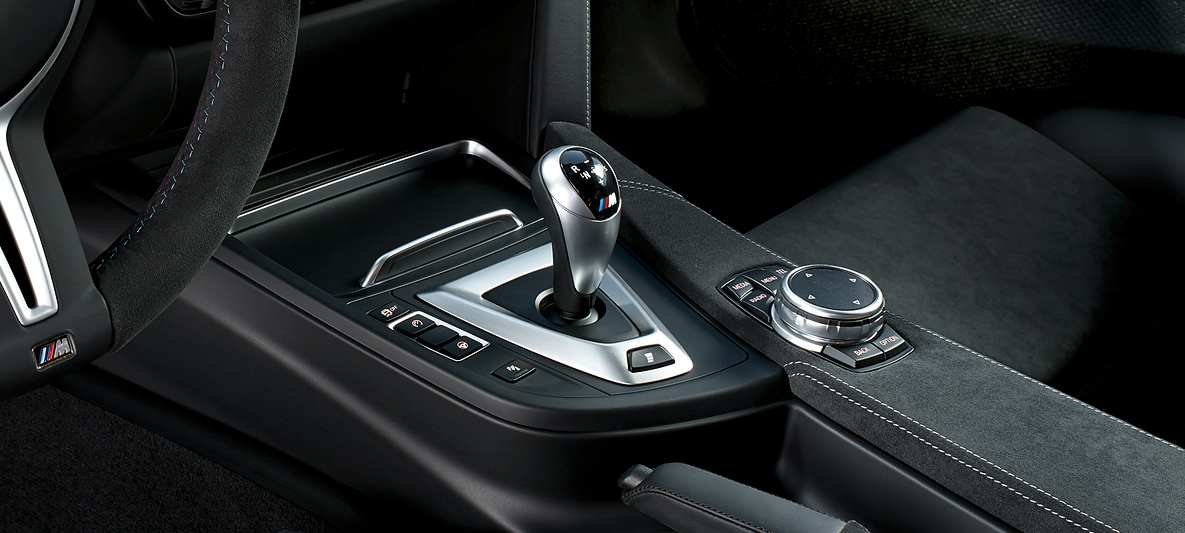

  • 7-speed M double-clutch transmission with Drivelogic

    The M double-clutch transmission with Drivelogic is an innovative 7-speed double-clutch transmission specially designed for the BMW M high-rev engine. The system boasts a traction-optimised automatic gear selection, Launch Control, Low Speed Assist, as well as an Automatic Start/Stop function. It makes it possible to change gears extremely quickly without any loss in power. Two sub-transmissions, each with its own clutch, continuously relay the power of the engine to the rear wheels. Gear changes can be controlled automatically or manually using the gearshift paddles on the steering wheel, or the gear lever. Drivelogic can be automatically (D Drive mode) or manually (S sequential mode) controlled, and in each mode three shifting options are available: extremely sporty, comfortable or efficient.
    Just as with Launch Control, which allows maximum acceleration from a standing start, an extremely dynamic driving experience is the result. Shifting gears at high speed is also possible without using the clutch and without any interruption in the power delivery. The transmission management and integrated Launch Control are matched to the higher power output and increased torque of the M4 GTS.

PURE PERFORMANCE.

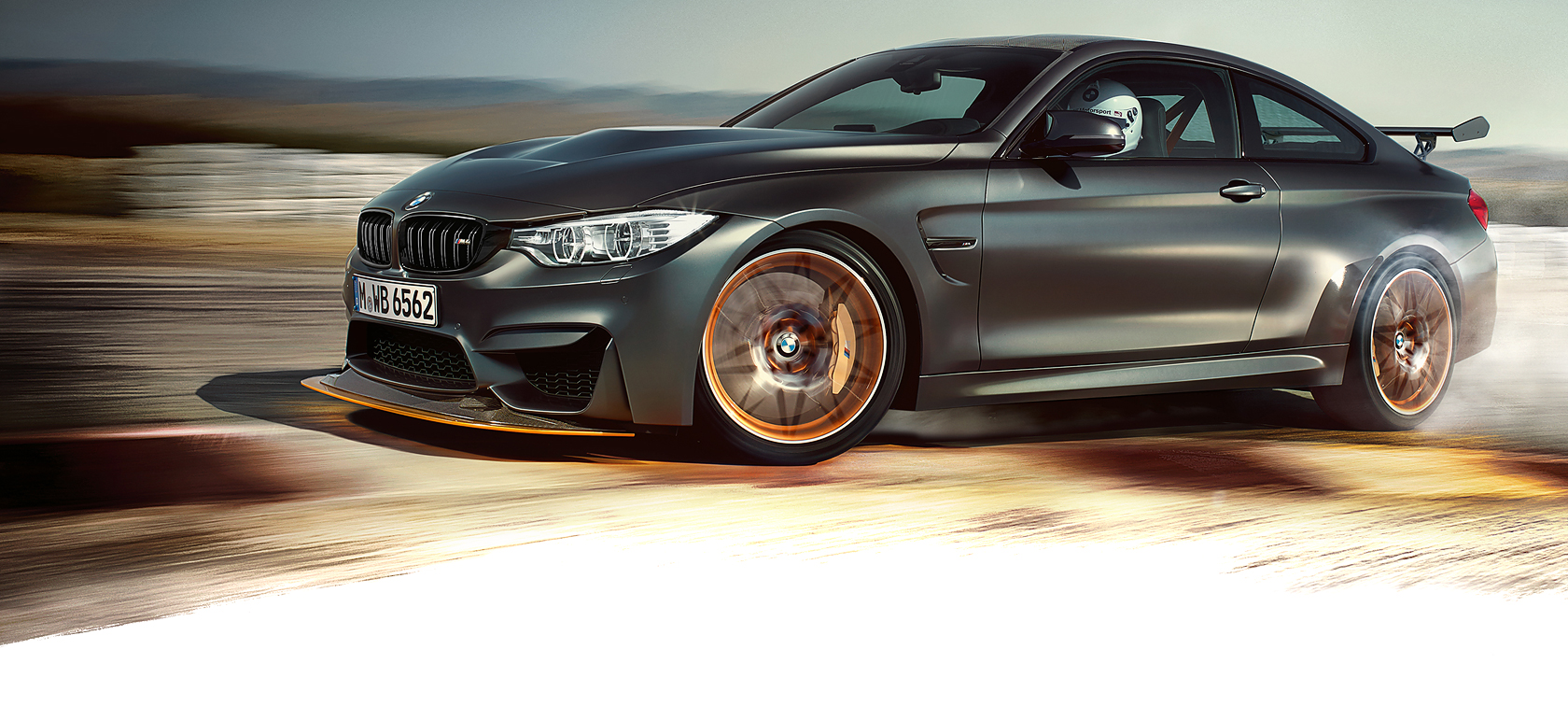

The BMW M4 GTS in action.

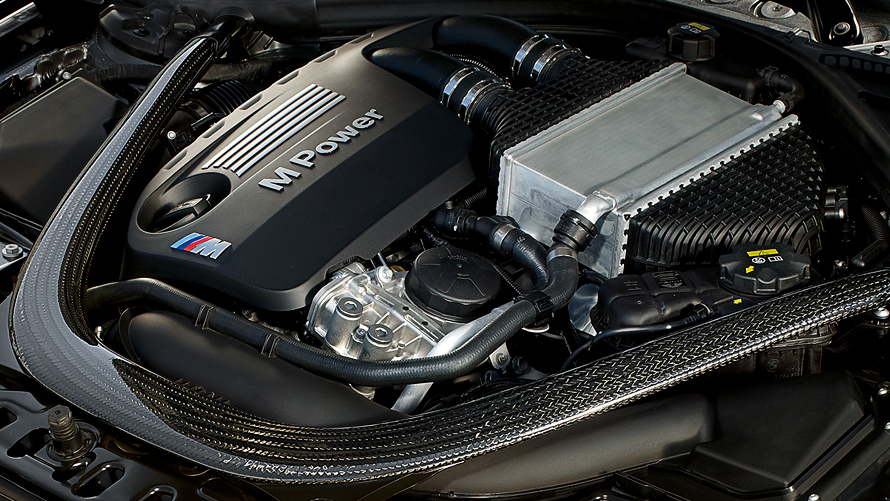

The BMW M4 GTS engine.

368 kW.

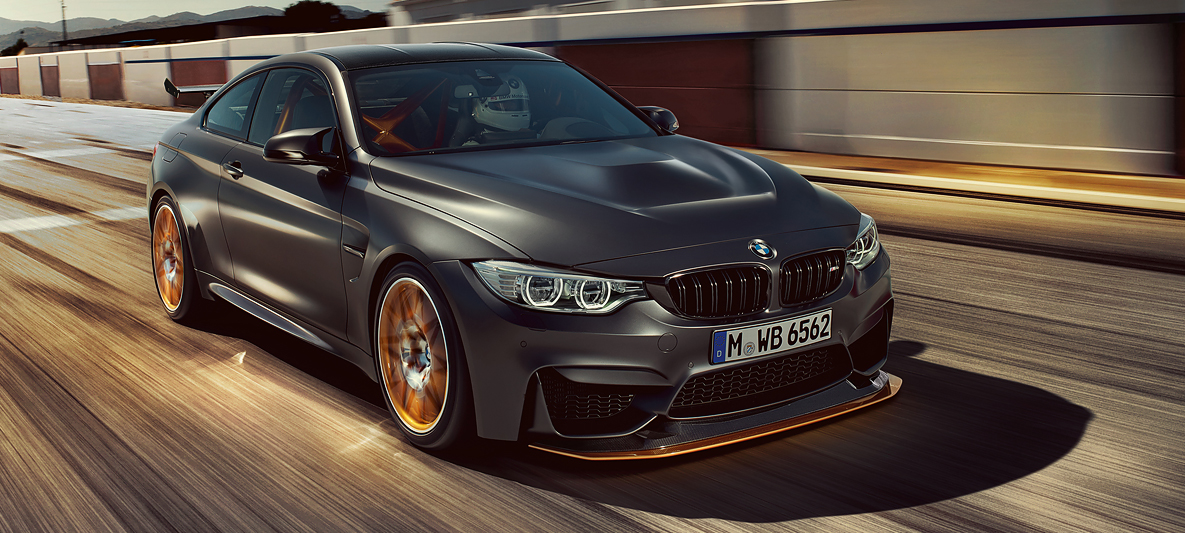

EXTERIOR DESIGN.

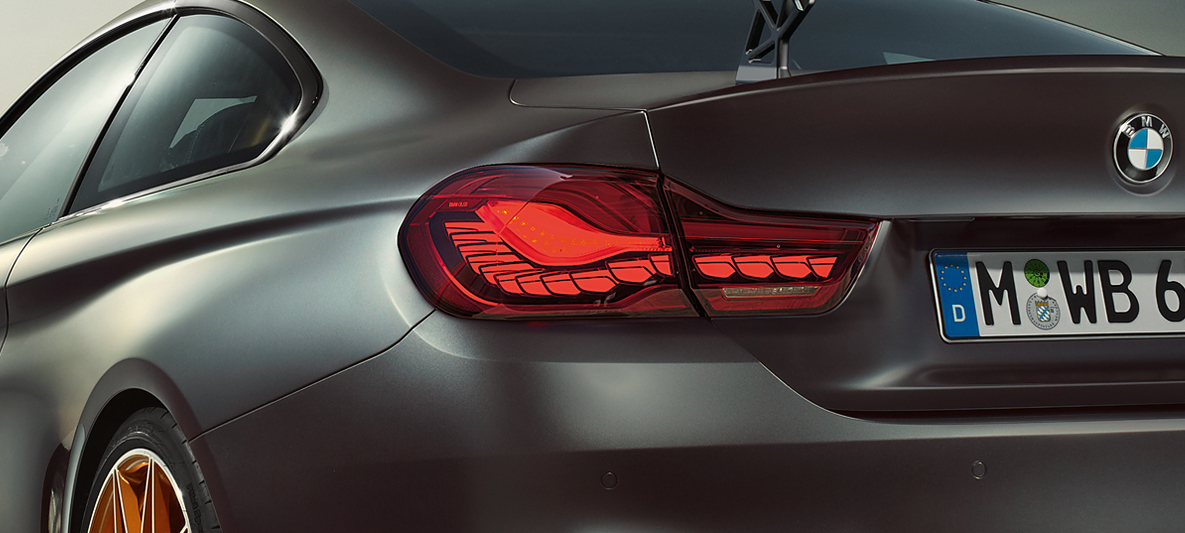

The BMW Individual high-gloss Shadow Line equipment details were extended to include a front ornamental grille and gill elements in Black high-gloss. Rear lights with OLED (organic light-emitting diode) technology are used for the first time in a production model, giving this high-performance special model an unmistakable appearance - both during the day and at night..

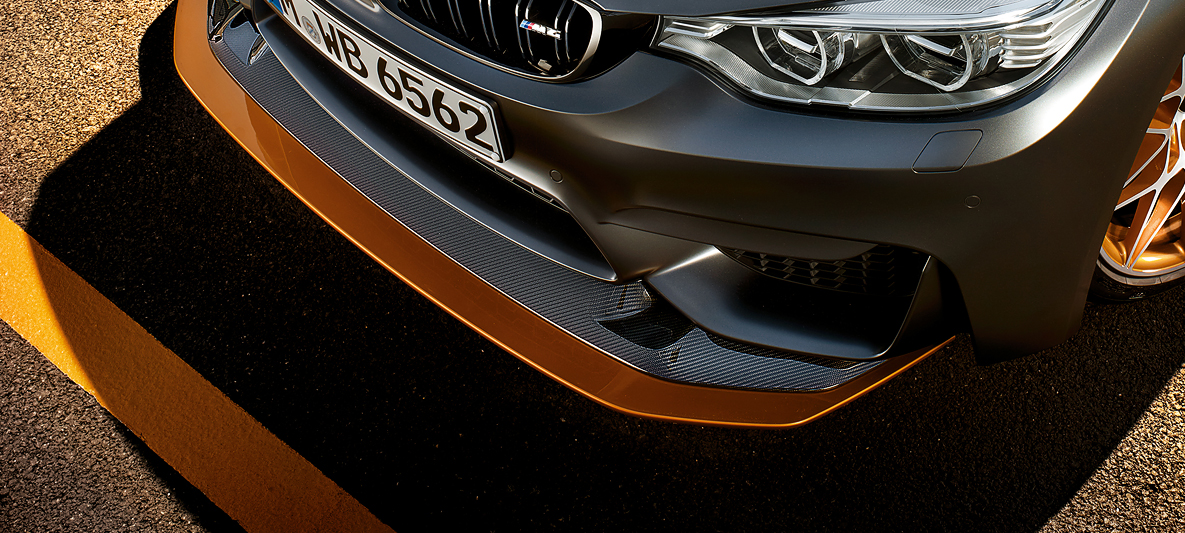

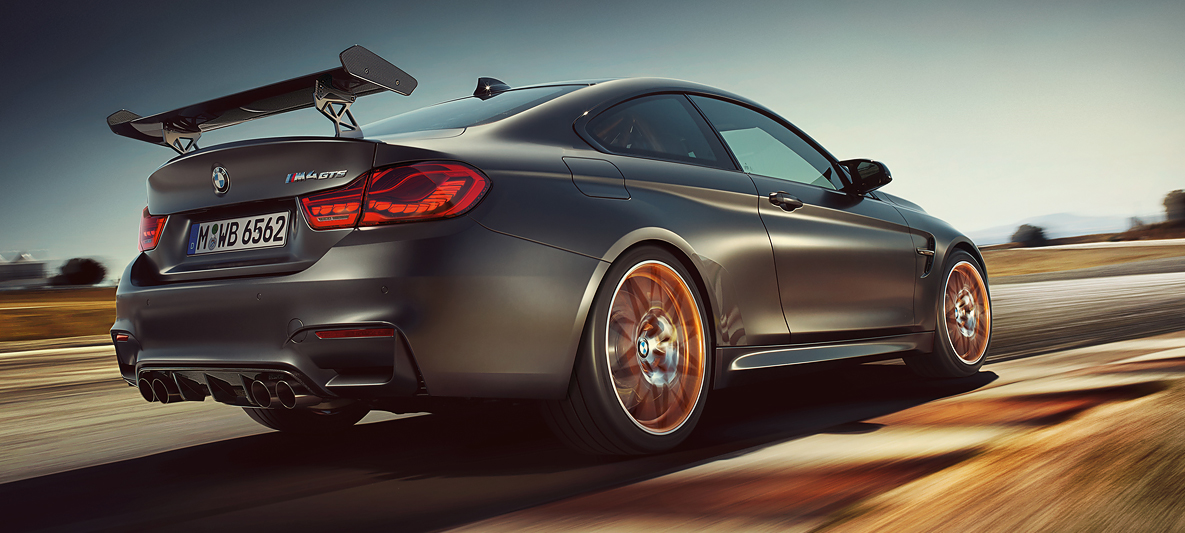

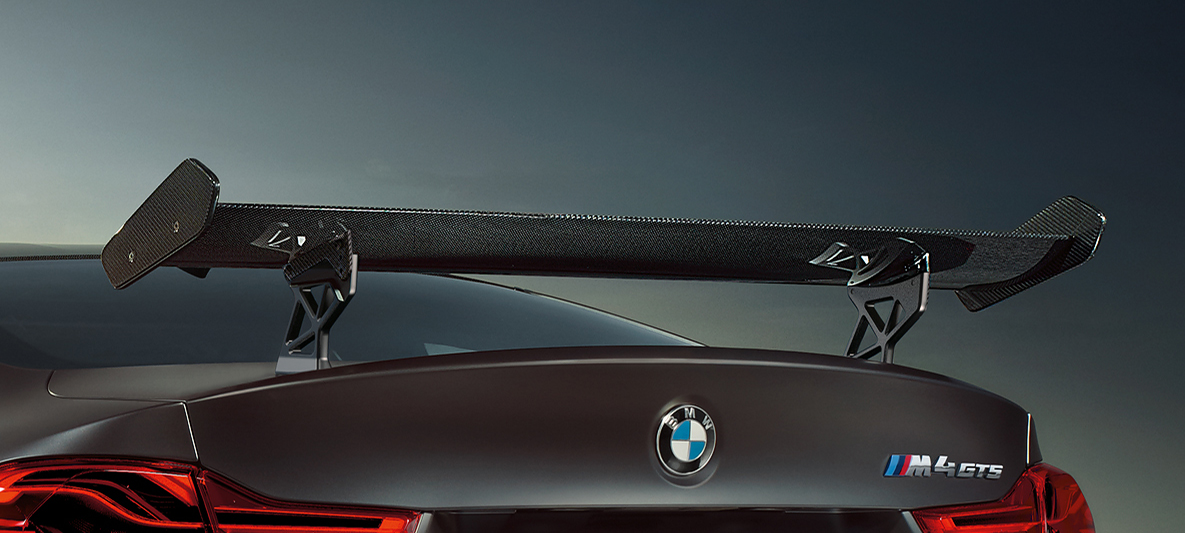

Exclusive carbon components lend the vehicle perfectly balanced weight distribution and aerodynamics with adjustable downforce. Other parts in the CFRP look include, aside from the rear diffusor, a rear wing on an aluminium base with adjustable wing piece, and a front splitter that is also adjustable. The paintwork of the CFRP front bonnet matches the body colour exclusive BMW Individual Frozen Dark Grey metallic. The accent on the front splitter in Acid Orange creates an effective contrast. Forged and gloss-lathed M light alloy wheels Star-spoke style 666 M in Acid Orange round off the athletic appearance. 19" at the front and 20" at the rear and with Michelin Pilot Sport Cup 2 tyres which are designed for maximum performance.

INTERIOR DESIGN.

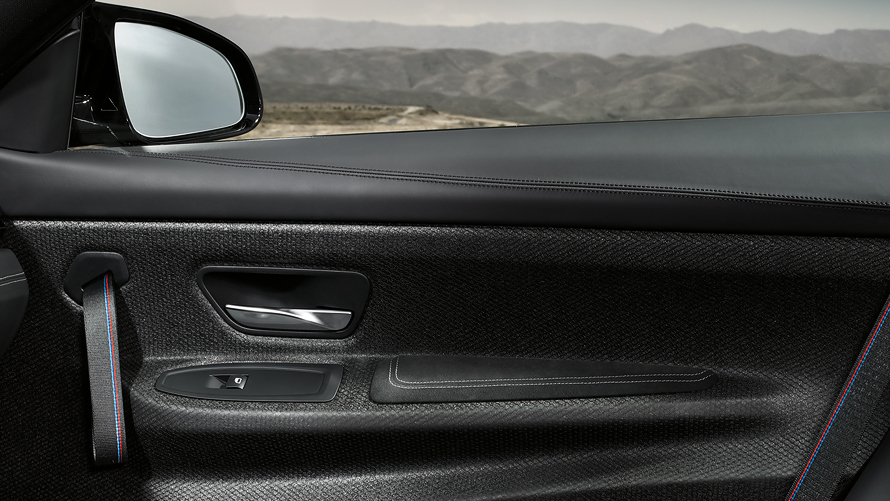

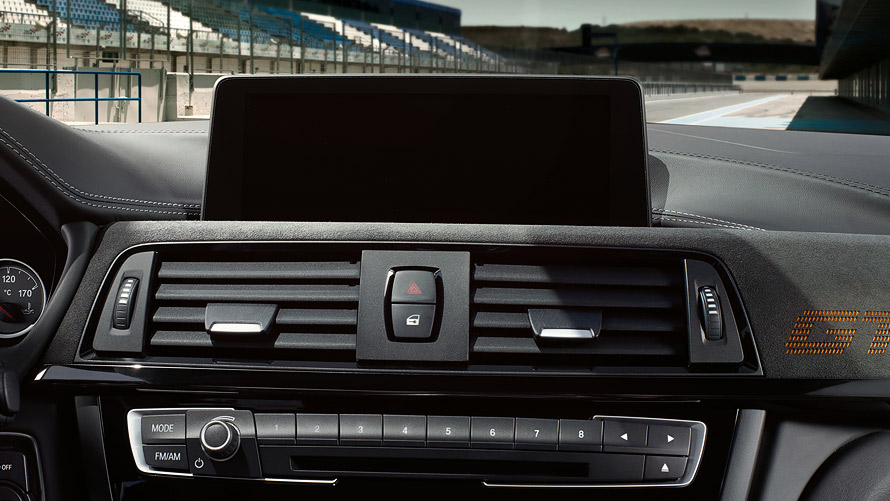

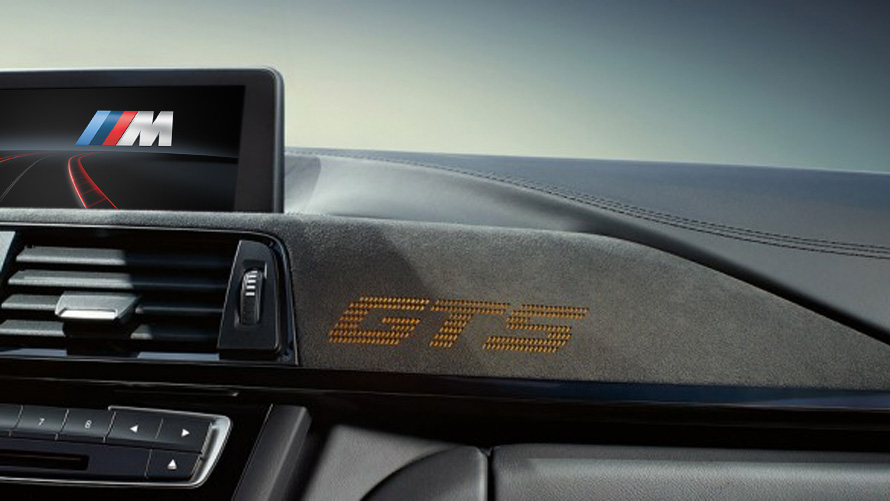

The weight-optimised centre console and handbrake lever, feature a top-quality Alcantara trim with contrast stitching in Dark Grey. The distinctively shaped door and side panels are constructed from lightweight material made from sustainable raw materials and weigh only half as much as that of standard parts. Door handle loops with M stripes replace the standard door handles. Whilst the striking interior trim finishers in Alcantara anthracite with perforated GTS designation in Acid Orange round off the interior perfectly.

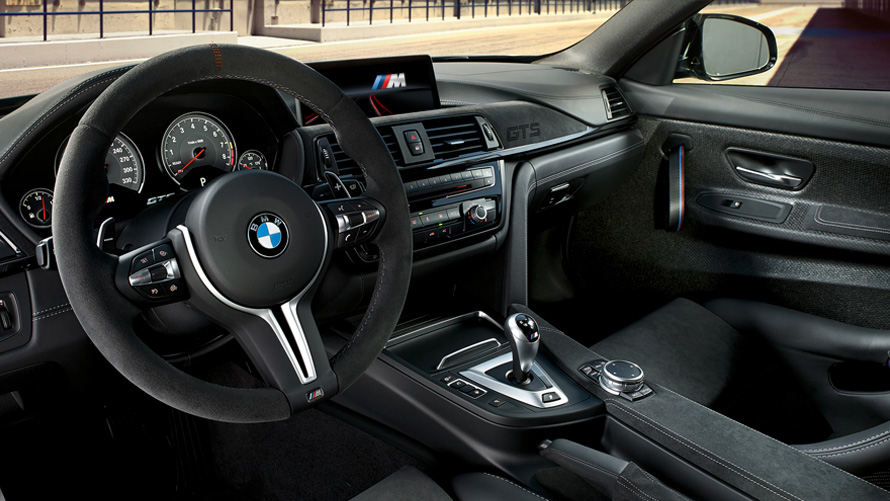

The M Sport steering wheel with multifunction buttons, an integrated driver airbag and the M emblem, is destined for use on the racetrack. The steering wheel features exclusive anthracite-coloured Alcantara with contrast stitching and contoured thumb rests. A 12 o’clock marking provides orientation during dynamic driving and the driver can also use the M Drive buttons to select the desired settings whilst driving.

The optional Clubsport package.

Clubsport package.

The optional Clubsport package offers extra safety when racing and further optimises the athletic driving experience. The centrepiece is the Acid Orange roll bar at the rear, made from highly rigid steel. Furthermore, the bar features attachment points for the 6-point seat belt, which is also part of the Clubsport package, giving the driver and front passenger extra stability for extreme acceleration. The crotch belts also ensure that the driver does not slip underneath and out of the belt in the event of a collision. The Clubsport package is completed by a fire extinguisher.
